Overview
The Polarizer Film Laminating Machine is the highest-end equipment for LCD screen repairing.
To laminate a polarizer onto an LCD screen using an LCD polarizer film laminating machine, follow these steps:
- Prepare the LCD Screen: Ensure that the LCD screen is clean and free from any dust or debris. Position it securely on a flat, stable surface.
- Prepare the Polarizer Film: Cut the polarizer film to the appropriate size, ensuring it matches the dimensions of the LCD screen. Remove any protective film layers from the polarizer film.
- Set Up the Laminating Machine: Place the LCD polarizer film laminating machine on a stable surface. Adjust the settings on the machine according to the specifications provided by the manufacturer.
- Position the Polarizer Film: Carefully place the prepared polarizer film onto the LCD screen, ensuring it is aligned correctly and covers the entire surface evenly.
- Activate the Machine: Turn on the LCD polarizer film laminating machine and initiate the laminating process. The machine will apply heat and pressure to bond the polarizer film to the LCD screen.
- Monitor the Process: Keep a close eye on the laminating process to ensure that the polarizer film is being applied smoothly and evenly across the LCD screen.
- Complete Lamination: Once the laminating process is complete, turn off the machine and carefully remove the LCD screen. Inspect the screen to ensure that the polarizer film has been successfully laminated without any wrinkles or air bubbles.
- Clean and Inspect: Use a soft, lint-free cloth to gently clean the surface of the LCD screen and remove any residue. Inspect the screen to ensure that the polarizer film is securely bonded and free from any defects.
By following these steps, you can effectively laminate a polarizer onto an LCD screen using an LCD polarizer film laminating machine.
We also have LCD polarizer film remove machine and polarizer film, pls contact us if you need.

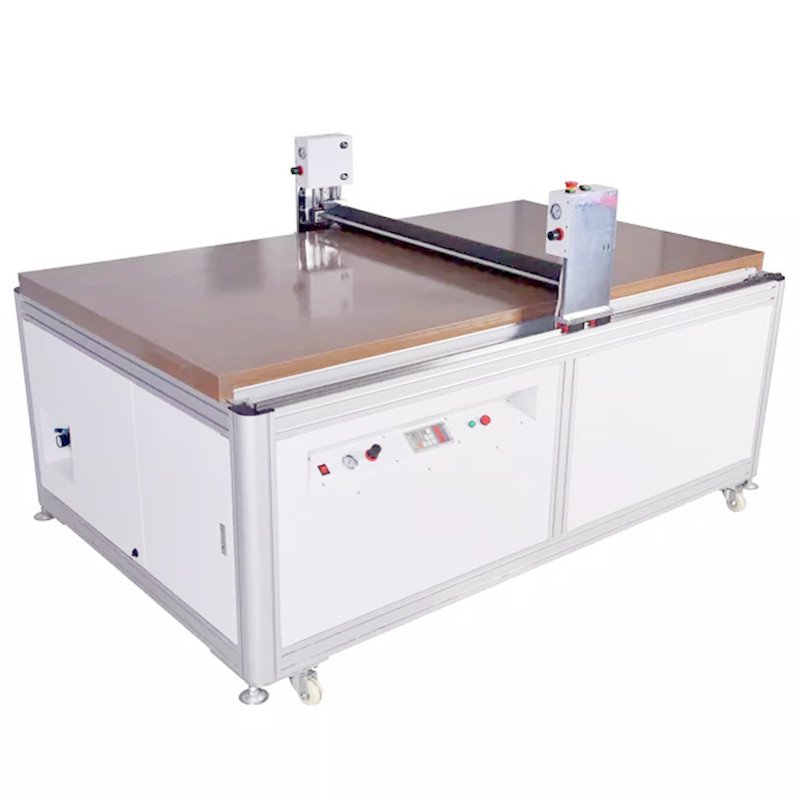

Device Model | ST-65L |
---|---|
Device Name | LCD Film Laminating Machine |
Device Description | Place the cleaned panel on the platform,the polarizer and panel were manually positioned and fixed by measuring the edge distance,next, the centrifugal protective film of polarizer is manually separated and placed in the material collection device,press the start button,bonding the glass substrate through the cylinder descending roller,the lead screw pushes the roller finally make polarizer accurately and quickly stick on the corresponding LCD substrate. |
Equipment Use | This product is suitable for the polarizing film peeling process in the surface scratch repair of various liquid crystal panels, and after that make the new polarizer stick to the glass substrate process.It is widely used in middle/large-size LCD screen and display panel production 、 maintenance; such as LCD TV, advertising machine. |
Equipment Specifications | *Suitable for LCD panel operation within 65 inches (Different sizes can be customized Upto 100 inch) *Glass thickness: 0.3-1.1MM[Single layer glass] *Type of glass:TFT *Applicable polarizer type: 2D polarizer at various angles |
Function Characteristics | * Unique fit structure design,can meet panel fit requirements within 65 inches . * Hard and soft panels sticking is carried out synchronously with the tearing film (protective film). * Long rubber wheel design, possess no deformation, anti-static, sufficient elasticity, a large contact area and other characteristics. * The adoption of high precision parts can meet the requirements of various high-precision and large-area sticking processes. * Sticking smooth, no bubbles, wrinkle free. 99.5% of products don't need to defoamed after bonding。 * Machine overall structure humane, safe operation, elegant appearance. |
Basic Parameters | * Input power: AC220V 50-60HZ * Rated power: 2KW * Working pressure: 0.4-0.8mpa * Applicable size: less than 65 inches (optional) * Pressure setting: 0.01-0.8mpa Pointer adjustment * Waste recycling device: Use synchronous motor coaxial drive,adjustable speed * Roller motion mode: Up-and-down type ,round trip |
Equipment Material | The main components are steel, electrophoresis aluminum , iron, plastic, etc. |
Equipment Packaging | Wooden boxes (Plywood box, no fumigation is required for export) |
Dimensions | 2000*1250*1300mm(L*W*H) |
Package Size | 2150*1340*1530mm(L*W*H) |
Weight | Net weight 350KG, Gross weight 425KG |
