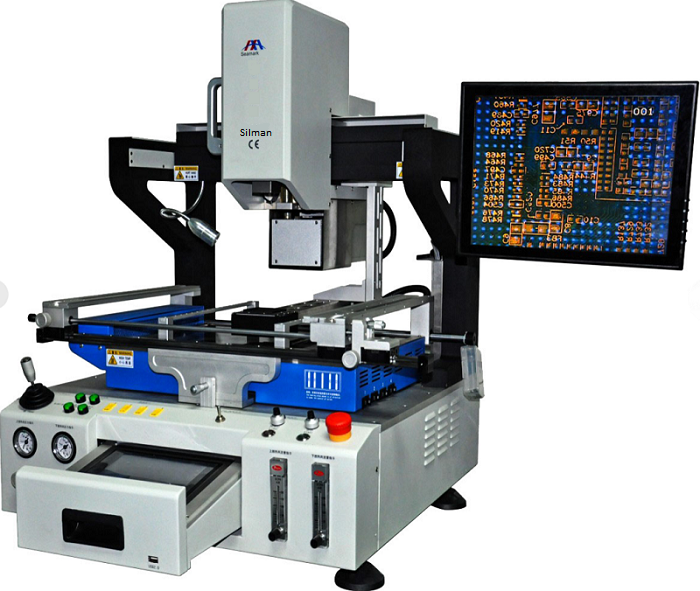

①Adopt high definition human-machine interface, available for setting “set up” and “operate” to avoid error set tings, The top heater device and mounting head 2 in 1 design, leadscrew drive, Z axis controlled by Panasonic servo control system, can control the positioning precisely. With automatic identify BGA chips and mounting height; it is of automatic soldering and de-soldering function. after start, it will show 3 temperature curves on the touch screen, the precision With ±3℃.Heating temperature, time, slope, cooling, alarming all shown on the touch screen. Adopt all kinds of BGA nozzles, with 360℃ rotation, easy for installation and replacement, customized is available;
②the alignment system is controlled by rocker, the optical lens can be moved left and right, back and forth freely by rocker. It can observe all aspects of the BGA chip. It displays clearly. The X Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy is within ± 0.01MM. with”+”infrared laser light for fast positioning, after positioning, it is locked automatically.
③It can save multiple groups profiles, and analyze, set and reverse the temperature curves at any time, You can print, save and analyze the curve through the USB port without other external devices (such as computer). Mounting and de-mounting chips automatically.
④V-groove PCB support, with rapid, convenient and accurate positioning, can fit for all kinds of PCB board; Flexible and removable universal fixture has protective effects and no damage to the PCB board, suitable for all kinds of sizes of BGA repair.
Independent control heaters:
①Integrated design of top heater with efficient ceramic heater; Air source , including compressed air and nitrogen, is changed freely to meet repairing requests.
②It is convenient to use bottom heater and top heater in the meantime by the system of synchronized operation and electric lift.
③Large size IR heater, high performance heat pipes and the micro crystal plate so that preheat PCB thoroughly.
