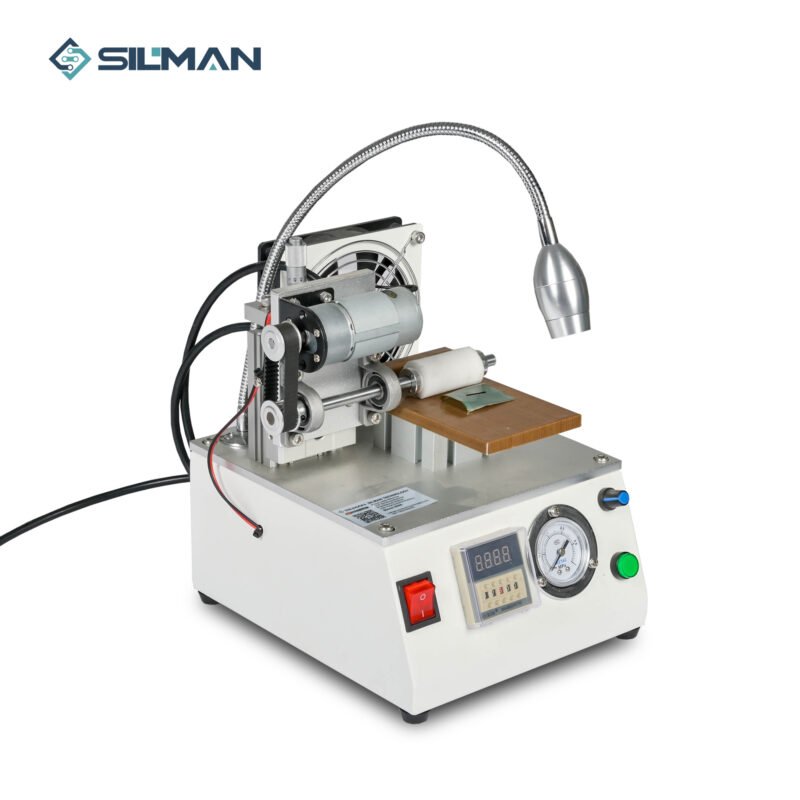

TAB COF Cleaning Machine
- Versatile Cleaning Capability: The TAB COF Cleaning Machine is designed to clean Flexible Printed Circuits (FPC), Chip-on-Flex (COF), and Tape Automated Bonding (TAB) components, offering versatility in electronics cleaning applications.
- Adjustable Size Compatibility: With an applicable size range of 15-70mm for TAB COF, this machine accommodates various sizes of components, ensuring compatibility with a wide range of electronic devices.
- Efficient Single-piece Cleaning: This machine is capable of cleaning 1 piece of TAB COF at a time, optimizing cleaning efficiency for individual components.
- Vertical Cleaning Direction: The cleaning process is conducted in a vertical direction, ensuring thorough and effective cleaning of the TAB COF components.
- Adjustable Cleaning Time: The equipment offers flexibility with adjustable cleaning time settings ranging from 0 to 60 seconds, allowing customization based on the specific cleaning requirements.
- High Production Frequency: With a production frequency of 50 pieces per hour for TAB and COF components, this machine enhances productivity in electronics manufacturing and repair processes.
- Reliable Supply Pressure: The machine requires a supply pressure of 0.2MPa from a dry gas source, ensuring consistent and reliable cleaning performance.
- Flexible Power Supply: The TAB COF Cleaning Machine supports a wide range of power supply specifications, including AC110V-220V, 50Hz, with a power consumption of 30W, enabling compatibility with various electrical systems.

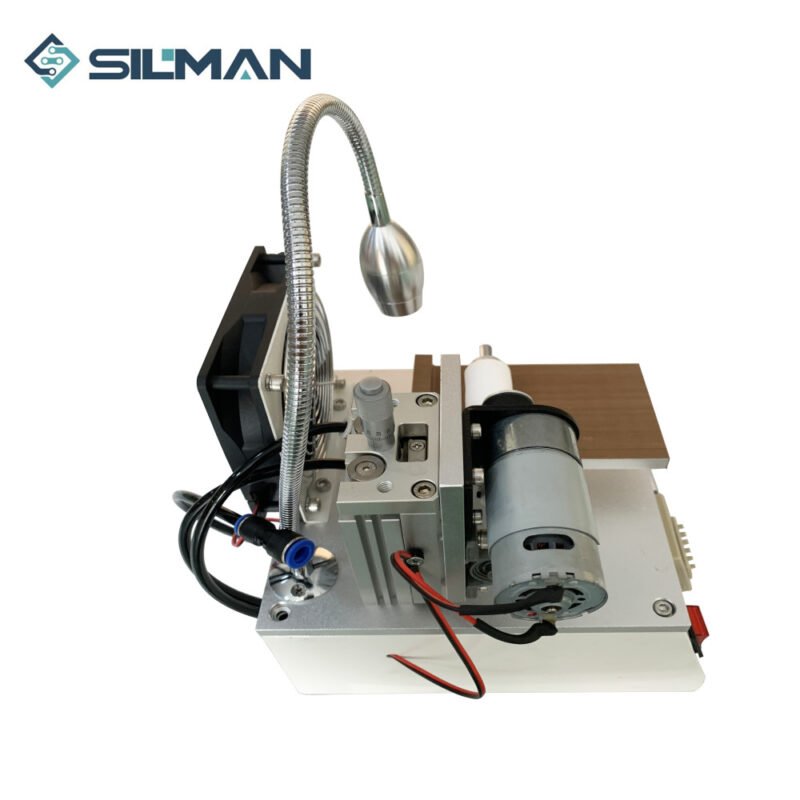

- Quality Pneumatic Device: Equipped with SMC cylinder and air pressure meter combination, the pneumatic device ensures reliable operation and precise control during the cleaning process.
- Convenient Work Control: The cleaning process is controlled by electrical appliances, allowing for easy operation and management of cleaning tasks.
| Product name | TAB COF Cleaning Machine |
|---|---|
| Equipment use | Clean FPC, COF, TAB |
| Applicable to TAB COF size | 15-70mm |
| Clean the number of tab cof | 1pc /time |
| Cleaning direction | Vertical |
| Equipment cleaning time | 0-60s adjustable |
| Production frequency | TAB, COF 50 PCS/Hour |
| Supply pressure | 0.2MPa dry gas source |
| Power supply | AC110V-220V, 50Hz, 30W |
| Pneumatic device | SMC cylinder and air pressure meter combination |
| Work control | Time is controlled by electrical appliances |
| PWM no-electrode adjustment | |
| Position detection | None |
| Manipulation | Button+time operation |
| Parameter settings | Cleaning time and air pressure can be adjusted |
| freely according to your need | |
| Motor speed | 0-1450 rpm/minute |
| Max torque of motor | 3.4kg.cm |
| Peak power | 30W |
| Machine size | 250*250*250mm (L*W*H) |
| Machine net weight | 6.5kg |
| Package size | 330*330*330mm (L*W*H) |
| Package weight | 9.5kg |
