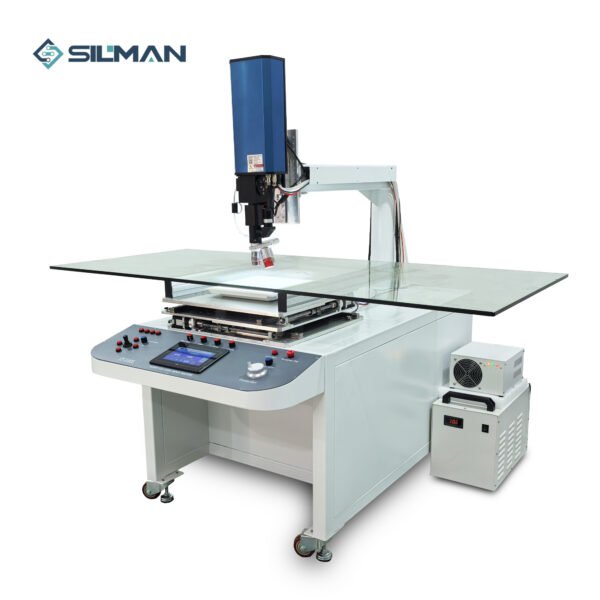

ST-100L LCD TV Laser Repair Machine
Precision cutting of semiconductor circuits, is to repair semiconductor failures ,analysis and in optical micromachining applications excellent tools for increasing productivity .Can significantly increase the of IC design engineers and fault analysis personnel productivity ,provides valuable tools for rapid removal of passivated materials and cutting circuits .The system can greatly improve the quality of production by quickly repairing defects and re-moving short circuits.On LCD screen repair industry accounted for the high-end repair technology, the most high-end technology of LCD screen repair ,LCD screen repair industry in addition to the COF loose welding ect.(This error can be repaired with a bonding machine) others such as ITO break, short line, bright line, half-line, dotted line ,a multi-line laser machine can be used to repair. Laser machine with high efficiency, fixed rate, low cost (the same fault in the laser machine does not need replacement parts, (and do not affect the repair rate), in large-scale production factory & after sale and service company are widely used ,as the main equipment for repairing screen
* Precise Electric Controlled Microscope, Lens Switched by One time Mouse Click.
* LASER Working Size Electric Control, with 4 different shapes optional for choice.
* Big Size Working Stage for LCD Panel.
* Inbuilt damping device to avoid images shaking.
* XYZ Axis moving speed can be adjustable and easy to be switched.
* Lens automatic switched and focus fast.
* High Resolution CCD Monitor with good quality images.
What can a lcd laser repair machine repair?
1, Defective Color Lines (Horizontal lines and Vertical lines), White Spots, Bright Line, Half line, Multi-line, Dotted line, etc,Caused by short circuit or impurities.
2, Support Display TFT-LCD、IPS、LTPS、OLED, etc.
3, Support LG, SAMSUNG, Toshiba, Sony, CHANGHONG,TCL,Haier,Skyworth, Hisense, Konka and other all brand LCD Display.
4, Support MAX 100inch Size LCD;
5, Support 2k, 4K LCD.
Applicable to users:
1, Large-Scale LCD Panel Manufacturer, TV Factory;
2, After Market Service (AMS) Company, LCD Screen Maintenance Industry.
3, LCD TV Distributors to Provide After-Sales Service.
4, Brand LCD TV Company Authorized/Cooperated Service Company
How to use a lcd laser repair machine?
1, Inspection: HD Microscope Imaging to Figure Out Defective LCD area and Control Circuit(Gate Lines).
2, Repair : Use Powerful Laser to Micro Weld/Solder the Mask on Backup Lines, to Re-connect to the “Ok” Control Circuit of the Same Color, to Re-gain the Voltage signal.
3, Test: Review the repaired LCD area
Do you have training for your machines?
Yes.One device can provide 4 technicians to participate in training learning for free. combining theory with practice, let on-site technician quickly master basic operating rules of the machine, LCD panel troubleshooting methods and basic maintenance skills.
Featured Specs
| Model: | ST-100L |
|---|---|
| Z effective stroke | 100mm |
| X/Y effective stroke | Horizontal 1350mm vertical 800mm height 1600mm |
| Work surface: actual size horizontal 1600mm*1300mmThe size of the glass table is 1500mm in the horizontal direction and 1300mm in the vertical direction. (If you need to increasethe operating range, it is easy to upgrade. Note: The method of extending the glass and the vertical vertical screen of the | |
| support frame is strengthened. The operating range is based on the glass table.) The above parameters can basically meet the size | |
| of 100 inches. | |
| Machine size: | W1350 *L1350*H1600mm (horizontal swing screen design) |
| Display: | up to 100-inch display |
| Working temperature: | 25℃ ~ 28℃(Optimal Temperature) |
| TV Repair Size | 3-100 inch |
| Ambient humidity: | 65±5％RH |
| Spot indication: | digital light + red light |
| Laser system: | Nd-YAG LASER- free-tuning laser (one laser) |
| Wavelength : | 1064/532 nm dual wavelength |
| Output power: | 7mj |
| Frequency : | 1~30HZ |
| Lens switching: | electric switching |
| Multiples: | 5X times 10X times 20X times |
| Output effect: | ± 2% |
| Laser accuracy: | adjustable within ± 10μm |
| Laser range: | long direction point adjustable |
| Platform suspension: | airbag |
| Operating mode: | Electronic control button |
| Input voltage: | AC single phase 220V, 50~60Hz, 10A |
